The map contains the 108km DN600 Kutina – Slavonski Brod Gas Pipeline, which runs from Kutina, Sisacko-Moslavacka, to Slavonski Brod, Brodsko-Posavska.
Table of Descriptions
1 Product Details
2 Files Included in This Digital Map
3 Editability of Map
4 Related Upstream/Downstream Pipelines
1 Product Details
- Product Name: Map of Kutina – Slavonski Brod Gas Pipeline
- Naziv Proizvoda: Karta Plinovod Kutina – Slavonski Brod
- Product Type: Vector Map
- Pipeline Length: 108km
- Country: Croatia
- From: Kutina, Sisacko-Moslavacka
- To: Slavonski Brod, Brodsko-Posavska
- No. of Gas Nodes, Pigging Station: 3
- No. of Block Valve Stations: 5
- Coordinate Data: Not Available
- File Formats: Adobe PDF, Adobe Illustrator
- Lifetime Updates: Supported
- Language: English (Some abbreviations may retain their customary forms in the local language.)
Note: This digital map is NOT a GIS map or don’t contain coordinate data.
2 Files Included in This Digital Map
[Main Map] Kutina – Slavonski Brod Gas Pipeline
This map includes the geographical area from the pipeline’s starting point to its end point. Its content contains the pipeline route, stations along the pipeline, and the administrative regions that the pipeline passes through.

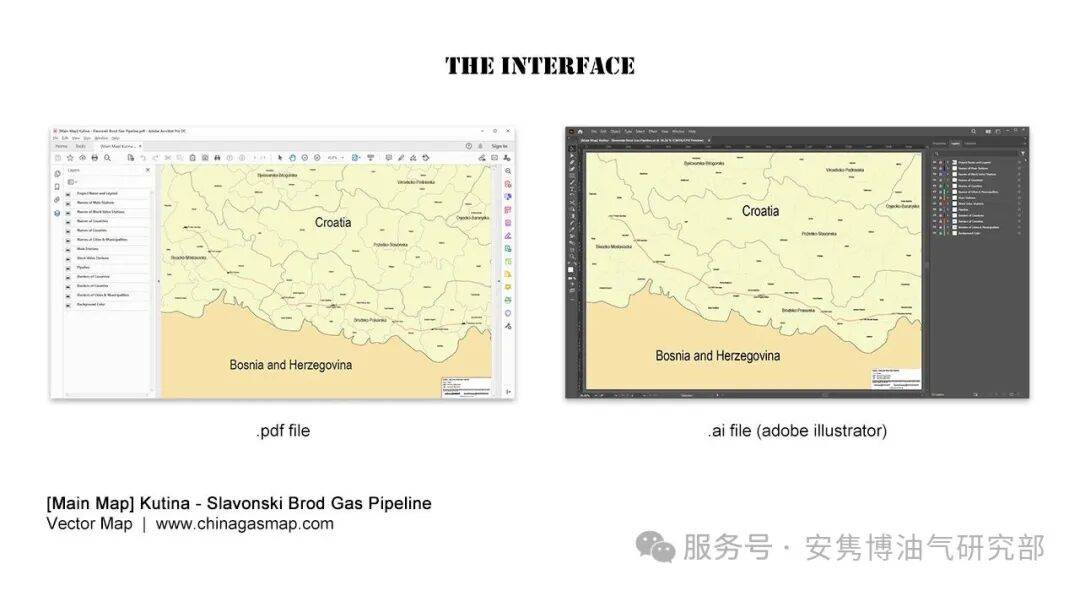

Two file formats, .pdf and .ai (Adobe Illustrator), are included. Both of them are editable and layered. Users can show and hide a layer simply with a mouse click.
The map consists of following independent layers:
- Project Name and Legend
- Names of Main Stations
- Names of Block Valve Stations
- Names of Water
- Names of Countries
- Names of Counties
- Names of Cities & Municipalities
- Main Stations
- Block Valve Stations
- Pipeline
- Borders of Countries
- Borders of Counties
- Borders of Cities & Municipalities
- Background Color
3 Editability of Map:
Based on the layered digital map (.pdf and .ai), users can perform further development and modifications, including but not limited to:
- Adjusting the position of text and modifying its attributes such as font, font size, and color;
- Adjusting the position and size of icon symbols;
- Modifying the path of oil and gas pipelines to reflect changes caused by rerouting;
- Adding new pipelines and stations;
- Changing the border color and line weight of different administrative regions;
- Modifying the map background color.
4 Related Upstream/Downstream Pipelines:
We also provide digital maps of following direct upstream/downstream pipelines.
Interconnection Pipelines (Bidirectional):
Városföld – Slobodnica Gas Pipeline
Zagreb East – Kutina Gas Pipeline
Downstream Pipelines:
Nova Kapela – Požega Gas Pipeline
Kutina – Dobrovac Gas Pipeline
