In large LED display projects, the transmission system is like the ’s neural network – its health directly determines the vitality of the entire display system. As screen areas expand, resolutions increase, and installation environments become more complex, traditional copper cable transmission solutions can no longer meet the demands for high quality, long distance, and high reliability. Fiber optic transmission technology, with its revolutionary advantages, is becoming the mainstream choice for large projects. However, from equipment selection to final stable operation, many steps are involved – planning, deployment, commissioning, maintenance – and a mistake in any detail can lead to project delays, degraded performance, or even failure.

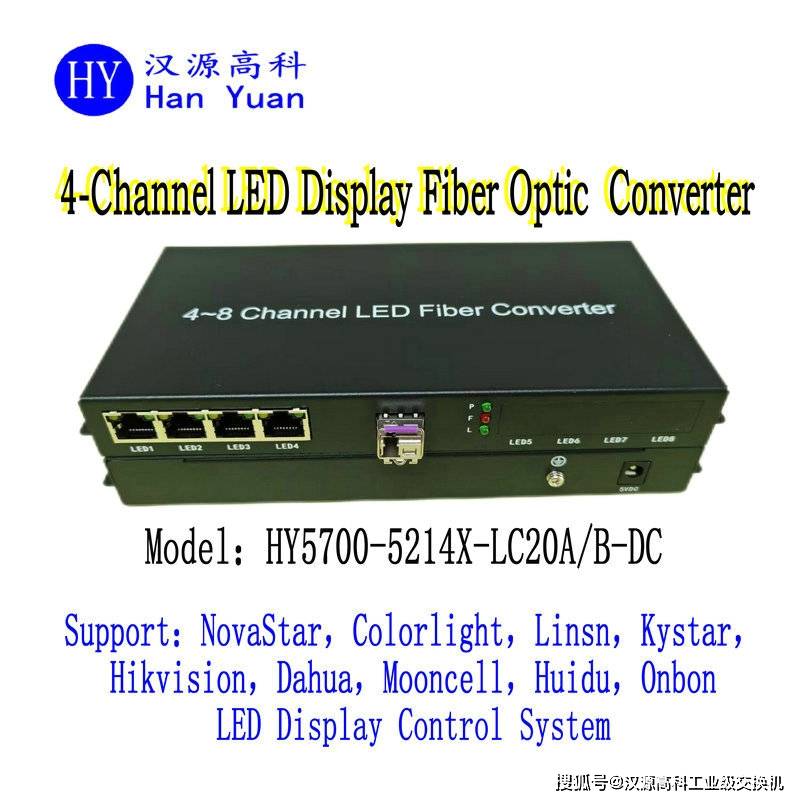

This article will systematically describe the entire process from preliminary planning to post‑operation maintenance, focusing on Hanyuan Gaoke‘s industry‑leading 4‑channel dedicated LED display fiber optic transceiver HY5700-5214X-LC20A/B-DC, combined with practical experience from large projects. It aims to provide a detailed and reliable “battle manual” for integrators, system integrators, and technical leads.
Part 1: Pre‑Battle Preparation – Precise Planning and Scientific Selection
1. In‑Depth Requirements Analysis: More Than Just “Transmitting Far”
At the start of a project, you must go beyond the basic thinking of “simply transmitting signals” and conduct a comprehensive requirements analysis:
Signal source analysis: Identify the control card brand and model (e.g., Nova, Colorlight), the number of output network ports, data bandwidth requirements, and the communication protocol characteristics of the sending and receiving cards.
Distance measurement: Accurately measure the actual cabling distance from the control room (or sending end) to each screen (or receiving end), and add a margin (typically 10‑20%). Pay attention to the maximum transmission distance of single‑mode fiber. The standard version of Hanyuan Gaoke’s HY5700-5214X-LC20A/B-DC supports 20km, covering most urban applications. For ultra‑long distances, 40/60/80km versions must be customized in advance.
Environmental assessment: For outdoor projects, focus on temperature range (HY5700-5214X-LC20A/B-DC supports -30℃ to 75℃), waterproof/dust protection (the device itself needs to be placed in a waterproof enclosure), and sources of electromagnetic interference (e.g., large motors, wireless base stations). For indoor projects, consider cabling convenience and equipment room cooling.
System capacity planning: Based on the total pixels of the screen (one pair of HY5700-5214X-LC20A/B-DC can drive 2.6 million pixels) and possible future expansion needs, determine the number of transceiver pairs required. Its four independent Gigabit ports perfectly match the outputs of multiple sending cards or a single multi‑port sending card; port allocation must be planned rationally.
2. Solution Design and Bill of Materials (BOM)
Based on the requirements analysis, draw a system topology diagram. A typical large‑scale distributed LED display fiber optic transmission network topology is as follows:
[Control Room] LED video processor/sending card -- (Cat6a) --> Hanyuan Gaoke HY5700-5214X-LC20A/B-DC (transmitter) -- (single‑mode fiber) -->
[Fiber Link] May pass through fiber distribution frames, fusion splice points, outdoor junction boxes, etc. -->
[Screen End] Hanyuan Gaoke HY5700‑5214X‑LC20A/B‑DC (receiver) -- (Cat6a) --> screen receiving card --> LED cabinet
Key BOM items:
- Hanyuan Gaoke HY5700-5214X-LC20A/B-DC (counted in pairs, pay attention to A/B end distinction).
- Single‑mode fiber (G.652.D), pigtails, patch cords (LC interface).
- Fiber distribution frames, ODF boxes, waterproof splice boxes (outdoor).
- Cat6a or better shielded network cables (for short connections between transceivers and sending/receiving cards).
- Dedicated 5V DC power adapters (consider centralized or distributed power supply schemes).
- Auxiliary materials: racks, waterproof enclosures, cable labels, cable management accessories, etc.
Part 2: Project Implementation – Standardized Construction and Meticulous Installation
1. Fiber Link Deployment: Quality is the Lifeline
Cabling construction: Fiber cabling should follow telecommunications industry standards, avoid exceeding the minimum bend radius (typically 20 times the fiber diameter), and never pull aggressively. Leave a pull cord when laying in conduits. For outdoor direct burial or aerial installation, use armored cables and ensure proper grounding and lightning protection.
Fusion splicing and testing: Fusion splice points are a major source of loss. Splicing must be performed by qualified personnel, and end‑to‑end attenuation should be tested with an OTDR to ensure total link loss is within the design margin (Hanyuan Gaoke devices have ample optical power margin; typically the requirement is that total link loss is less than the difference between transmit power and receive sensitivity). Record test data for each fiber as important project documentation.
2. Equipment Installation and Connection: Details Determine Success or Failure
Equipment mounting: Securely mount the HY5700-5214X-LC20A/B-DC on a DIN rail inside a rack or waterproof enclosure. Its thickened metal shell aids heat dissipation and interference rejection.
Fiber connection: After cleaning the end face of the LC fiber connector, align the key and insert it into the device‘s optical port until a slight “click” is heard. Arrange the pigtails neatly to avoid stress on the connector.
Network cable connection: Use good‑quality Cat6a cables and connect them one‑to‑one according to the device’s numbered ports (1‑4) to the corresponding ports on the sending and receiving cards. The ports support auto‑MDI/MDI‑X, so there is no need to worry about straight‑through or crossover cables.
Power supply: Connect a stable 5V DC power source. For critical applications, consider a redundant power supply solution. The device consumes <5W, making it energy‑efficient and environmentally friendly.
Part 3: System Commissioning and Optimization – From Connectivity to Excellence
1. Power‑On and Status Check
Power on the transmitter and receiver devices in sequence. Observe the device indicators:
Power LED (PWR): Steady on indicates normal power supply.
Optical port LED (OPT/LINK): Steady on indicates that the fiber link is physically connected and the received optical power is within the normal range.
Network port LEDs (1‑4 LINK/ACT): Steady on for a port indicates electrical link connectivity; blinking indicates data activity.
If the optical port LED is off, check:
- Is the fiber connected correctly (single‑fiber bidirectional requires correct A/B end pairing)?
- Is the fiber link loss too high?
- Is the fiber end face contaminated?
2. Signal Testing and Software Configuration
- Basic connectivity test: From a computer connected to the sending card, ping the receiving‑end network (if the receiving card has an IP address) or directly send a test pattern using the control software.
- Control software settings: In control software such as Nova or Colorlight, configure the display parameters and connect sending and receiving cards just as you would with a direct network cable connection. The HY5700-5214X-LC20A/B-DC is a transparent transmission device and requires no protocol settings – one of its great advantages.
- Performance stress test:
- Play high‑speed motion video and high‑grayscale images to check for frame drops, tearing, or stuttering.
- Run a long‑duration loop test sequence to monitor system stability.
- For multi‑channel signals, test that each channel remains independent and stable without mutual interference when all are transmitting at full load simultaneously.
3. Common Troubleshooting Guide
- Symptom: No display on one or all channels.
- Check the corresponding network port LED. If off, check the network cable and the sending/receiving card’s network port.
- Check the fiber optic LED. If off, inspect the fiber link as described above.
- Power cycle both the transmitter and receiver.
- Symptom: Flickering image or noise.
- Check if the fiber connectors are clean; try reseating them.
- Check the network cable quality and length (recommended <100m for transceiver‑to‑card connections); try replacing the cable.
- Verify that the power supply is stable; try a different power adapter.
- Check for strong electromagnetic interference sources nearby; ensure the equipment is properly grounded.
- Symptom: Unstable long‑distance transmission.
- Measure the received optical power at the receiver end with an optical power meter to confirm it is within the device’s receive sensitivity range (≤ -26dBm). If the power is too low, check the fiber link loss, re‑splice problematic points, or upgrade to a longer‑distance version.
Part 4: Operation, Maintenance, and Service Assurance – The Path to Long‑Term Stability
1. Establish System Documentation
Record the project topology, device serial numbers, IP addresses (if any), fiber splice loss test reports, key configuration parameters, etc. This documentation is the foundation for future maintenance, upgrades, and rapid fault location.
2. Develop an Inspection and Preventive Maintenance Plan
- Regular inspections: Check device indicator status, device temperature, power supply stability, and whether fiber jumpers are loose or aged.
- Cleaning maintenance: Regularly clean fiber connector end faces using specialized tools.
- Spare parts strategy: For critical projects (live broadcasts, command centers), consider keeping cold or hot spares of key devices (e.g., the HY5700-5214X-LC20A/B-DC) and an adequate supply of fiber jumpers.
3. Make Good Use of Manufacturer Support
Hanyuan Gaoke provides professional technical support. When encountering complex technical problems that cannot be resolved on‑site, contact the manufacturer promptly, providing detailed fault descriptions and device information to obtain the most efficient remote or on‑site support. The product’s MTBF of over 100,000 hours and reliable quality are themselves the strongest guarantee of long‑term stable operation.
Conclusion: Professional Tools Empower Professional Engineering
The success of a large LED display project is the result of advanced products, scientific design, standardized construction, and meticulous commissioning working together. Hanyuan Gaoke‘s 4‑channel dedicated LED display fiber optic transceiver HY5700-5214X-LC20A/B-DC, as a transmission tool deeply customized for the LED display industry, provides a powerful foundation for project implementation with its outstanding performance, broad compatibility, and rugged reliability. However, even the best tool requires a skilled craftsman to use it effectively. By following the systematic deployment and commissioning methodology described in this article, engineering teams can fully realize the potential of this product, turning complex long‑distance, large‑scale LED display projects into stable, brilliant visual landmarks – truly achieving the ultimate goal of “zero signal loss, 100% display perfection.”
