Editable and layered digital map of the 740km (2 lines)48″ Trans-Mediterranean Pipeline (Trans-Tunisian Section) in Tunisia.
The map contains the 740km (2 lines) 48″ Trans-Mediterranean Pipeline (Trans-Tunisian Section), which runs from Tunisia-Algeria border in Majel Belabbes, Kassérine to Cap Bon Compressor Station in Haouaria, Nabeul. The pipeline is also know as Trans Tunisian Pipeline.
Table of Descriptions
1 Product Details
2 Files Included in This Digital Map
3 Editability of Map
4 Related Upstream/Downstream Pipelines
1 Product Details
- Product Name: Map of Trans-Mediterranean Pipeline (Trans-Tunisian Section)
- اسم المنتج: خريطة خط أنابيب الغاز عبر المتوسط (القسم التونسي)
- Product Type: Vector Map
- Pipeline Abbreviation: Transmed, TTPC
- Pipeline Length: 740km (2 lines)
- Country: Tunisia
- From: Tunisia-Algeria border in Majel Belabbes, Kassérine
- To: Cap Bon Compressor Station, Haouaria, Nabeul
- No. of Compressor Stations, Pigging Stations: 14 (2 lines)
- No. of Valve Stations: 38 (2 lines)
- Coordinate Data: Not Available
- File Formats: Adobe PDF, Adobe Illustrator
- Lifetime Updates: Supported
- Language: English
Note: This digital map is NOT a GIS map or don’t contain coordinate data.
2 Files Included in This Digital Map
[Main Map] Trans-Mediterranean Pipeline (Trans-Tunisian Section)
This map includes the geographical area from the pipeline’s starting point to its end point. Its content contains the pipeline route, stations along the pipeline, and the administrative regions that the pipeline passes through.

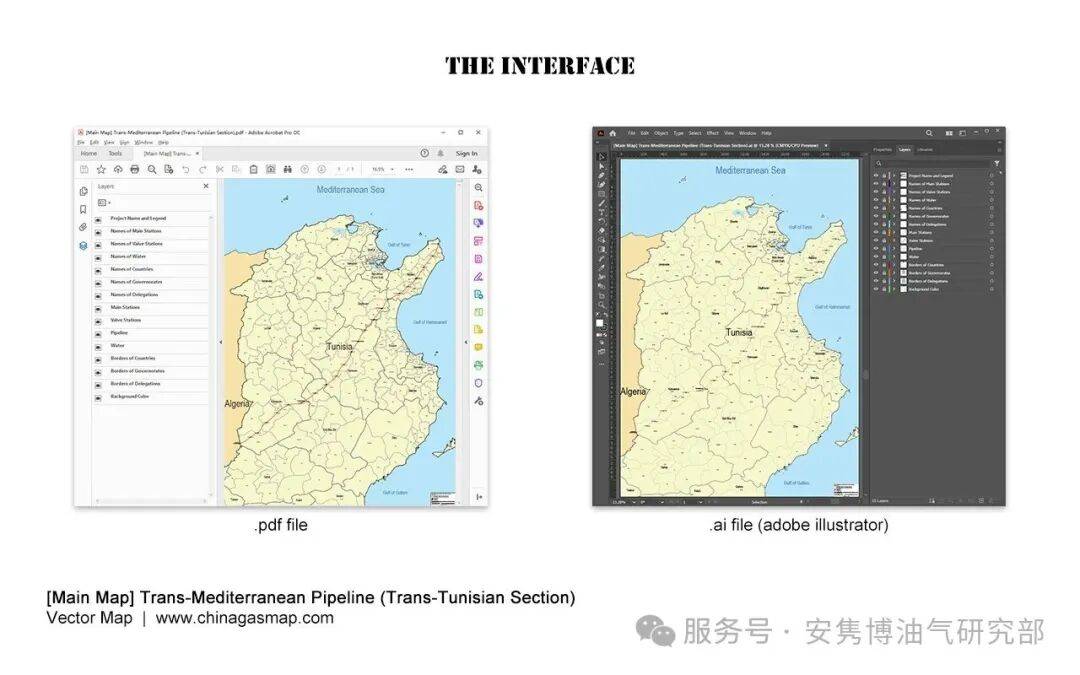

Two file formats, .pdf and .ai (Adobe Illustrator), are included. Both of them are editable and layered. Users can show and hide a layer simply with a mouse click.
The map consists of following independent layers:
- Project Name and Legend
- Names of Main Stations
- Names of Valve Stations
- Names of Water
- Names of Countries
- Names of Governorates
- Names of Delegations
- Main Stations
- Valve Stations
- Pipeline
- Water
- Borders of Countries
- Borders of Governorates
- Borders of Delegations
- Background Color
3 Editability of Map:
Based on the layered digital map (.pdf and .ai), users can perform further development and modifications, including but not limited to:
- Adjusting the position of text and modifying its attributes such as font, font size, and color;
- Adjusting the position and size of icon symbols;
- Modifying the path of oil and gas pipelines to reflect changes caused by rerouting;
- Adding new pipelines and stations;
- Changing the border color and line weight of different administrative regions;
- Modifying the map background color.
4 Related Upstream/Downstream Pipelines:
We also provide digital maps of following direct upstream/downstream pipelines.
Upstream Pipelines:
GO1, GO2 and GO3 Pipelines (Trans-Mediterranean Pipeline’s Algeria section)
